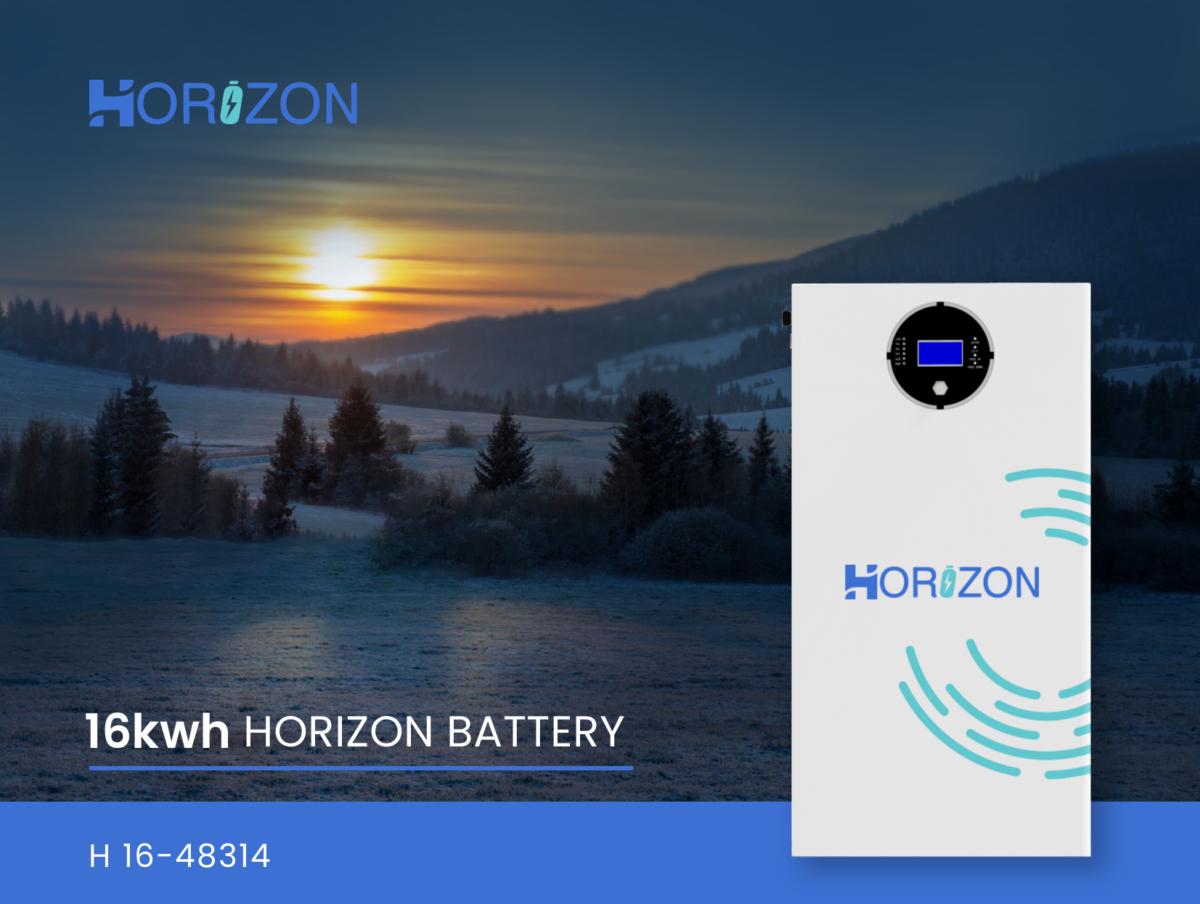

H 16-48314 (16kWh)

Mega-25314 (8.038 kWh)
Terra-51612 (31.334 kWh)

Product Features:

  • LCD display with Bluetooth connectivity
  • Supports up to 15 batteries in parallel
  • High inverter compatibility
  • Safe LiFePO4 rechargeable battery
  • High usable energy ratio with low self-consumption
Category:

Description

Technical Specifications:

Specification Details
Model H 16-48314
Battery Type LiFePO4 (Lithium Iron Phosphate)
Warranty 7 Years
Nominal Energy (Wh) 16,076.8 Wh
Nominal Capacity (Ah) 314 Ah
Nominal Voltage (V) 51.2 V
Operation Voltage Range (V) 40 – 58.4 V
Recommended Charge/Discharge Current (A) 150 A
Max. Continuous Charge/Discharge Current (A) 150 A
Peak Discharge Current (A) for 10 sec 200 A
Max. Parallel Quantities (pcs) 15 pcs
Protection Degree IP21
Dimensions (W×D×H) 420mm × 270mm × 800mm
Net Weight 115 kg
Installation Wall mounted, floor mounted
Communication CAN, RS485

Certification:

  • IEC61000
  • IEC62619
  • UN38.3

Operational Conditions:

  • Cycle Life: >6000 Cycles (25°C, 0.5C/0.5C)
  • Charge Temperature: 0°C to 60°C
  • Discharge Temperature: -30°C to 60°C
